Industry Blender Small Stainless Steel Pillow Block / Mounted Ball Bearings SUCP206

Name: Industry Blender Small Stainless Steel Pillow Block Mounted Ball Bearings SUCP206
Brand: kentie
Price: 8.1 USD

China Industry Blender Small Stainless Steel Pillow Block / Mounted Ball Bearings SUCP206 wholesale

Brand Name : kentie

Model Number : SUCP206

Certification : CE/SGS/ISO

Place of Origin : China

MOQ : 100

Price : US$8.1

Payment Terms : T/T, Western Union,Paypal

Delivery Time : 2-3 work days

Packaging Details : Plastic tube and paper carton

Material : 420 stainless steel+220 stainless steel

Specification : 30*38.1*160mm

Weight : 1.24kg

Seals type : ZZ shields

Retainer : Nylon/steel

OEM : Availible

Clearance : C0,C2,C3,C5

Contact Now

Industry Blender Small Stainless Steel Pillow Block / Mounted Ball Bearings SUCP206

Pillow Block Bearing SUCP206 has a combination of a stainless steel pillow block housing with an anti-rotation device with self-alignment and a set screw locking stainless steel insert bearing with a slinger seal design. This specific unit is a standard duty pillow block bearing with a wide inner ring and two set screws anda stainless steelunit with the standard base to center height with a grease fitting.

UCP206 Series Pillow Block Bearing is equipped with two specifically designed set screws that are positioned in the inner ring of the ball bearing to lock and attach to the shaft.

Applications of Pillow Block Bearing UCP206

suit a variety of applications, including packaging equipment, conveyor systems, agricultural equipment, construction plant, heat treatment equipment, forestry and marine equipment.

Specifications

Bearing Model	SUCP206 bearing
Outer Diameter	38.1mm
Inner Bore	30mm
Width	160mm
Material	Stainless Steel 440
Seals	ZZ
Lubrication	Oil/ Grease/Dry
Package	Plastic tube

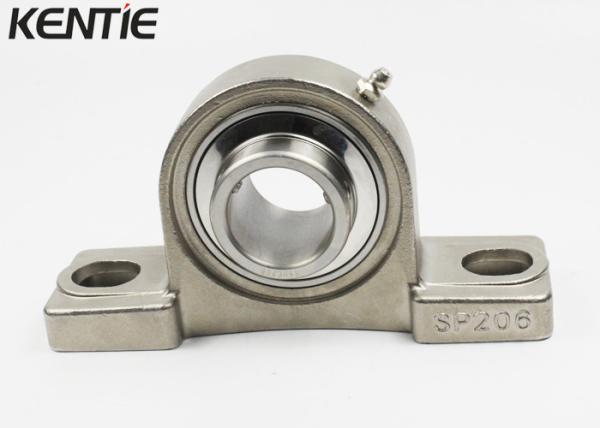

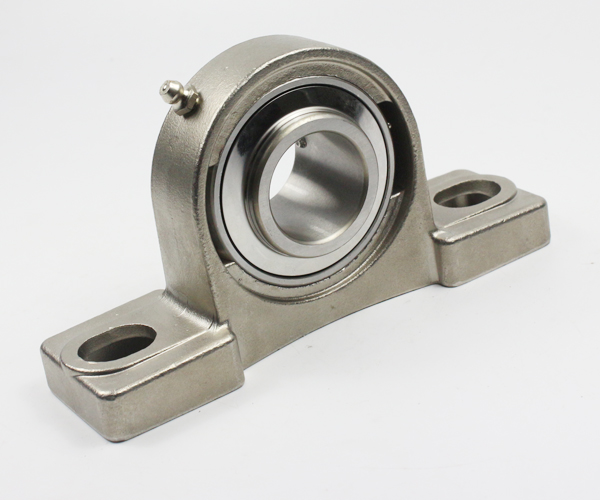

Detailed Pictures

Industry Blender Small Stainless Steel Pillow Block / Mounted Ball Bearings SUCP206

As a professional bearing manufacturer, we produce wide range deep groove ball bearings, especially the stainless steel deep groove ball bearings. All your demands for bearings will be satisfied.

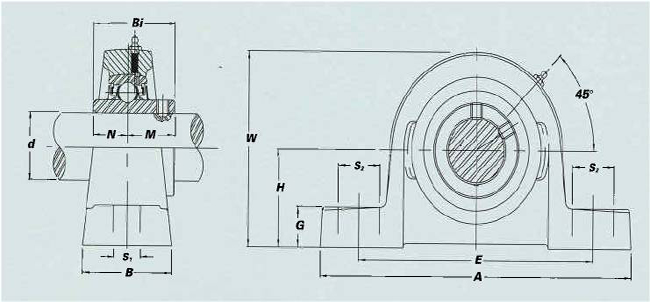

Unit No.	Dimensions 　mm												Bolt Size	Bearing No.	Housing No.	Weight
Unit No.	d	h	a	e	b	s1	s2	g	w	t	B	n	mm	Bearing No.	Housing No.	(kg)
UCP201	12	30.2	127	95	38	13	19	14	62	44.5	31	12.7	M10	UC201	P201	0.69
UCP202	15	30.2	127	95	38	13	19	14	62	44.5	31	12.7	M10	UC202	P202	0.69
UCP203	17	30.2	127	95	38	13	19	14	62	44.5	31	12.7	M10	UC203	P203	0.68
UCP204	20	33.3	127	95	38	13	19	15	71	48	34.1	14.3	M10	UC204	P204	0.66
UCP205	25	36.5	140	105	38	13	19	15	71	48	34.1	14.3	M10	UC205	P205	0.81
UCP206	30	42.9	165	121	48	17	20	17	84	53	38.1	15.9	M14	UC206	P206	1.24
UCP207	35	47.6	167	127	48	17	20	18	93	59.5	42.9	17.5	M14	UC207	P207	1.58
UCP208	40	49.2	184	137	54	17	20	18	100	69	49.2	19	M14	UC208	P208	1.89
UCP209	45	54	190	146	54	17	20	20	106	69	49.2	19	M14	UC209	P209	2.14
UCP210	50	57.2	200	159	60	20	23	21	113	74.5	51.6	19	M16	UC210	P210	2.66
UCP211	55	63.5	219	171	60	20	23	23	125	76	55.6	22.2	M16	UC211	P211	3.31
UCP212	60	69.8	241	184	70	20	23	25	138	89	65.1	25.4	M16	UC212	P212	4.9
UCP213	65	76.2	265	203	70	25	28	27	150	89	65.1	25.4	M20	UC213	P213	5.15
UCP214	70	79.4	266	210	72	25	28	27	156		74.6	30.2	M20	UC214	P214	6.2
UCP215	75	82.6	275	217	74	25	28	28	162		77.8	33.3	M20	UC215	P215	7.16
UCP216	80	88.9	292	232	78	25	28	30	174		82.6	33.3	M20	UC216	P216	8.1
UCP217	85	95.2	310	247	83	25	28	32	185		85.7	34.1	M20	UC217	P217	9.81
UCP218	90	101.6	327	262	88	27	30	33	198		96	39.7	M22	UC218	P218	11.96

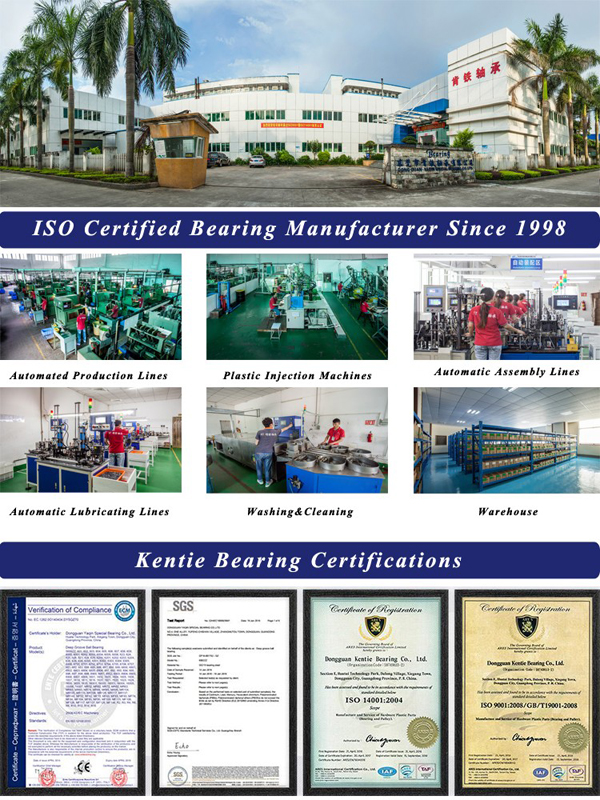

Company Information

Industry Blender Small Stainless Steel Pillow Block / Mounted Ball Bearings SUCP206

Quality certificate type: ISO9001, SGS, ROHS,CE

Year started: 1998 Number of production equipments:101
